T-box riboswitch PYLPGUUV

Putative PHE (GAA) T-box riboswitch from Shuttleworthia satelles DSM 14600

Source information

TBDB ID	PYLPGUUV
Host organism	Shuttleworthia satelles DSM 14600
Model used	Class I
Predicted regulation	Transcriptional
T-box riboswitch genomic accession	GG665866.1:1366910-1366579
Downstream protein description	phenylalanine--tRNA ligase, alpha subunit
Downstream protein ID	GenBank: EEP28657.1
T-box riboswitch length
Specifier loop sequence	AUUCA
T-box 5'-UGGN-3' sequence	UGGU
Predicted specifier	UUC
Predicted tRNA family	PHE (GAA)
Found cognate tRNA	True
Alternative specifiers	None
Metagenome	False
Structural predictions	Full

Genomic Context

Error loading NCBI Genome Browser - Cookies disabled To use the NCBI genome browser for visualizing genetic context of T-box riboswitch sequences, please enable cookies on your web browser.

Full T-box riboswitch FASTA sequence

>T-box Riboswitch Sequence PYLPGUUV AAAAAGGCAGTGAAGACCCACAGTAAGCCGCTGTGAATCCGTGACAGAGAGCCCTTTCGCGGTTGAGAGAGGGGCGACGGAGACAGCAGATGAAATTCAGGTTGGAGCCGCATTTCTGAAAGGCAAATGCTCCGAATCCGTTTTCGGGCGGATTTGAAAAGACAATCCGAGGAGAGAGCATAGCCGAGTAGGTGATGACGTTGGCGCGCGTTAGGCGCATGGAGAGTCTGTATTTACGCAGAAATCAGGGTGGTACCGCGGAGTTATGTCTTCGTCCCTTCGGGGACGGAGACTTTTTT

Predicted secondary structures

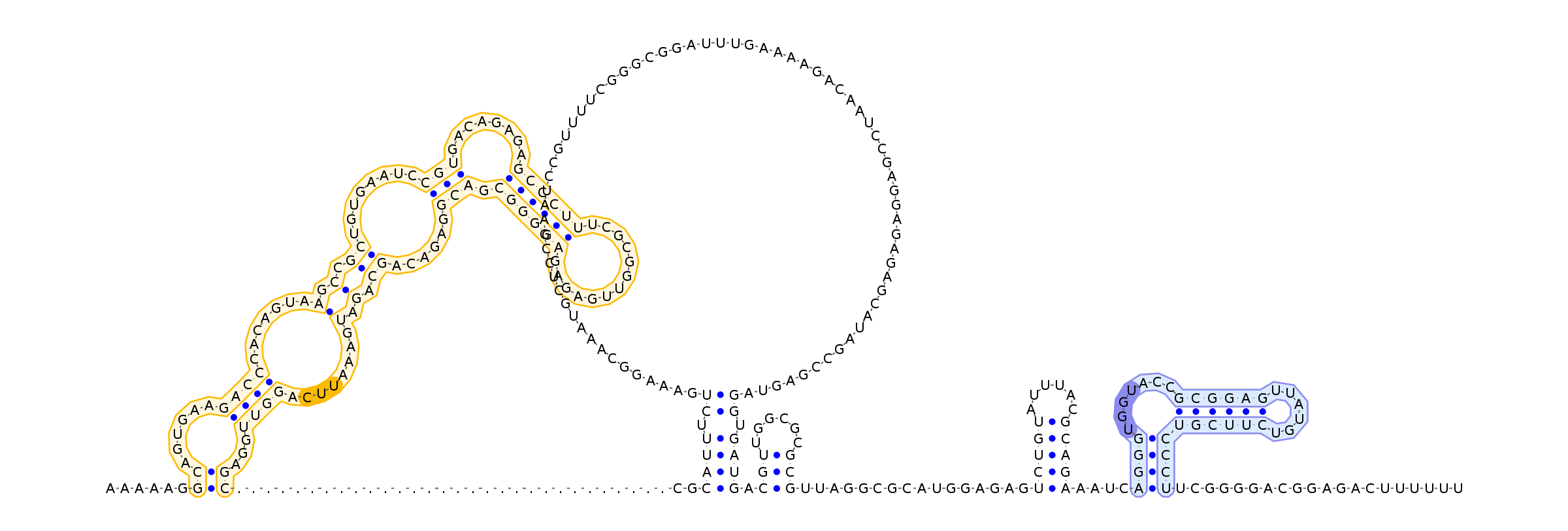

T-box riboswitch PYLPGUUV Antiterminator ......((......((((.......(.(.((........(((........((((((.............)))))).)))......)).).)........))))...))..((((.((.........................................................................)).)))).(((......)))................(((((......)))))....((((.......((((((......))))))))))....................

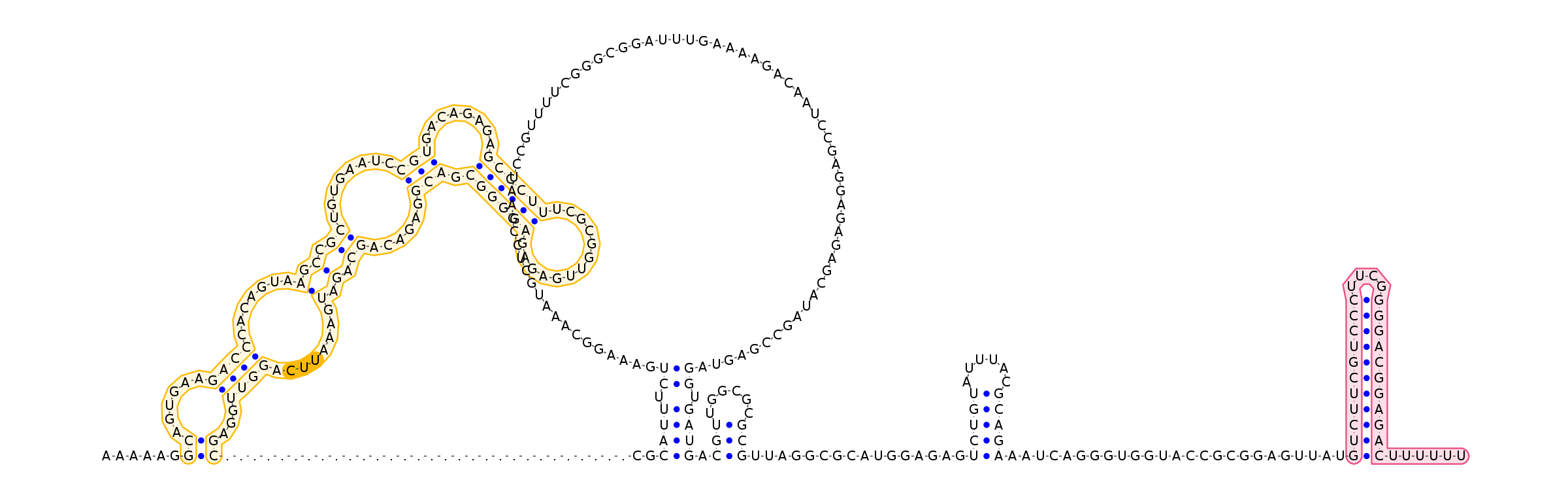

T-box riboswitch PYLPGUUV Terminator ......((......((((.......(.(.((........(((........((((((.............)))))).)))......)).).)........))))...))..((((.((.........................................................................)).)))).(((......)))................(((((......))))).........................(((((((((((....)))))))))))......

Specifier and tRNA predictions

Top specifier

Top predicted specifier: UUC
Top predicted tRNA family: PHE (GAA)

Best tRNA match for top specifier >PHE (GAA) tRNA from Shuttleworthia satelles DSM 14600
GCCCAGTTAGCTCAGTTGGTAGAGCAGCGGACTGAAAATCCGCGTGTCTCTGGTTCGATTCCGGAACTGGGCACCA

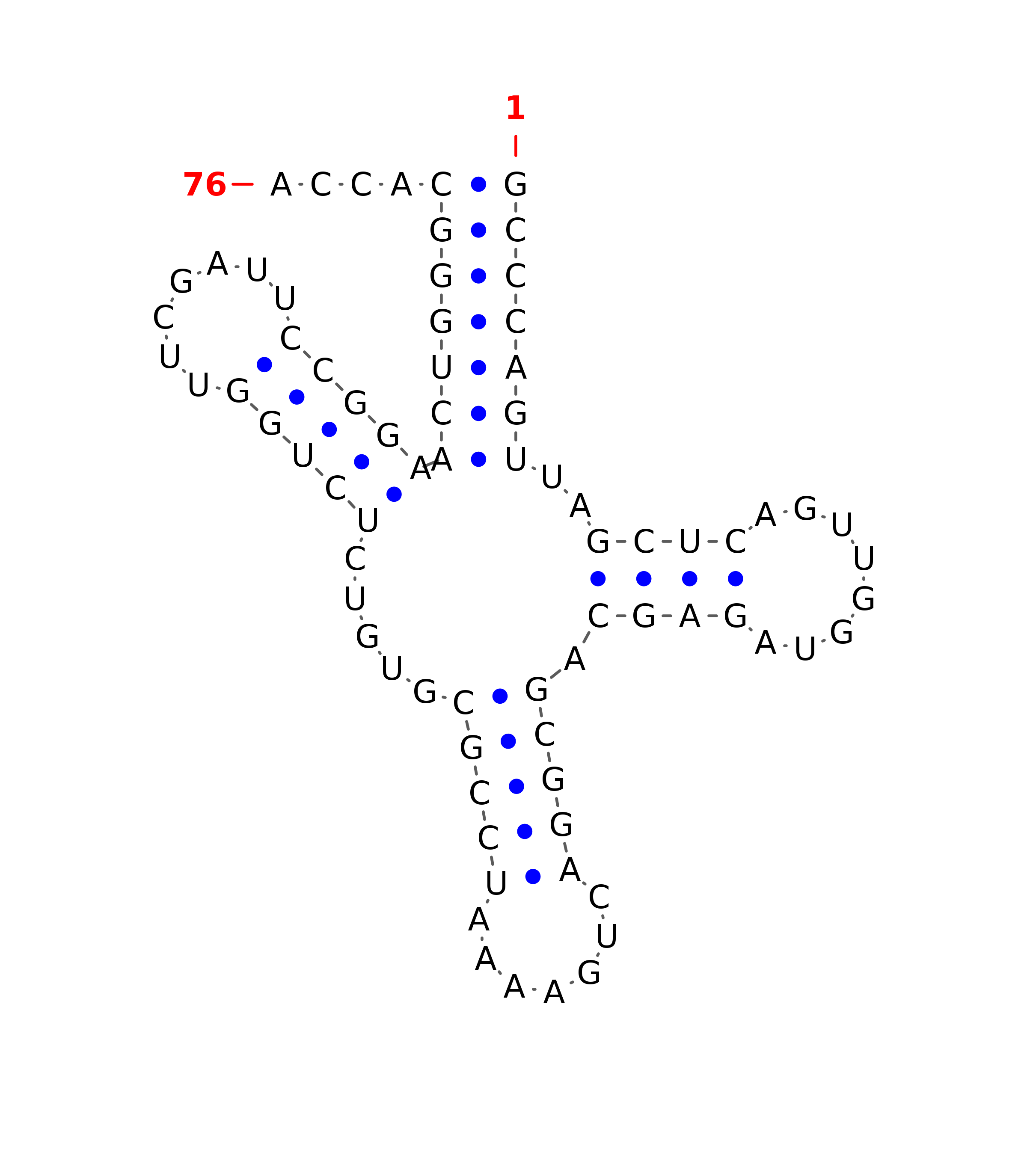

Predicted tRNA structure (((((((..((((........)))).(((((.......))))).....(((((.......))))))))))))....

Alternative specifier 1

Alternative 1 for predicted specifier: -
Alternative 1 for predicted tRNA family: -

Best tRNA match for alternative specifier 1 >TBDB tRNA pairing failed
tRNAscan-SE failed to find tRNA in host organism with anticodon matching predicted T-box specifier.

Predicted tRNA structure No tRNA structure predicted.

Alternative specifier 2

Alternative 2 for predicted specifier: -
Alternative 2 for predicted tRNA family: -

Best tRNA match for alternative specifier 2 >TBDB tRNA pairing failed
tRNAscan-SE failed to find tRNA in host organism with anticodon matching predicted T-box specifier.

Predicted tRNA structure No tRNA structure predicted.

Minimum Free Energy (MFE) Calculations

Folding MFE predictions

Antiterminator	ΔG° (kcal/mol)	-9.2
Terminator	ΔG° (kcal/mol	-20.6
	ΔΔG° (kcal/mol)

*Calculations performed using Vienna RNAeval at 37°C. More information available on methods avaialble on BioRXIV.

INFERNAL T-box riboswitch prediction output

Infernal prediction values

E-Value
Score	95.2
Bias	0.0
CM Accuracy	0.82

*More information about the meaning of these values can be found here.

T-box riboswitch structure prediction from input sequence

Feature	Length	Locus
Stem I		[7,108]
Stem II region
Stem III
Specifier region	-	[95,97]
T-box UGGN locus	-	[251,254]
Antiterminator		[247,279]
Terminator		[268,299]
All stems	-	[[7, 108], [111, 197], [199, 210], [227, 242], [247, 279]]

Input source sequence >GG665866.1:1366910-1366579
AAAAAGGCAGTGAAGACCCACAGTAAGCCGCTGTGAATCCGTGACAGAGAGCCCTTTCGCGGTTGAGAGAGGGGCGACGGAGACAGCAGATGAAATTCAGGTTGGAGCCGCATTTCTGAAAGGCAAATGCTCCGAATCCGTTTTCGGGCGGATTTGAAAAGACAATCCGAGGAGAGAGCATAGCCGAGTAGGTGATGACGTTGGCGCGCGTTAGGCGCATGGAGAGTCTGTATTTACGCAGAAATCAGGGTGGTACCGCGGAGTTATGTCTTCGTCCCTTCGGGGACGGAGACTTTTTT

INFERNAL output sequence >Infernal-GG665866.1:1366910-1366579
AAAAAGGCAGUGAAGACCCACAGUAAGCCGCUGUgAAUCCGUGACAGAGAGCCCUUUCGCgGUUGAGAgAGGGGCgACGGAGaCAGCAGAUGAAAUUCAGGUUGGAGCCGCAUUUCUGAAAggcaaaugcuccgaauccguuuucgggcggauuugaaaagacaauccgaggagagagcauA*[8]*GGUGAUGACGUUGGCGCGCGUUA---GGCGCAUGGAGAGUCUGUAU------UUACGCAGAAAUCAGGGUGGUACCGCGGAGUUAUguCUUCGUCCCUUCG

INFERNAL output structure - (Antiterminator) >Infernal-Structure-GG665866.1:1366910-1366579
::::::<<------<<<<-------<<<<<<---.----<<<--------<<<<<<____._______.>>>>>>.>>>---.-->>>>>>-------->>>>--->>,,<<<<<<<____............................................................_~~~~~>>>>>>>,<<<______>>>,,,,,,,,,,,,,,,,,,,<<<<<<<________>>>>>>>,,,,<<<<-------<<<<<_____.._>>>>>>>>>:::
